专利号 : ZL201830275459.1
枪与配件适用于松下

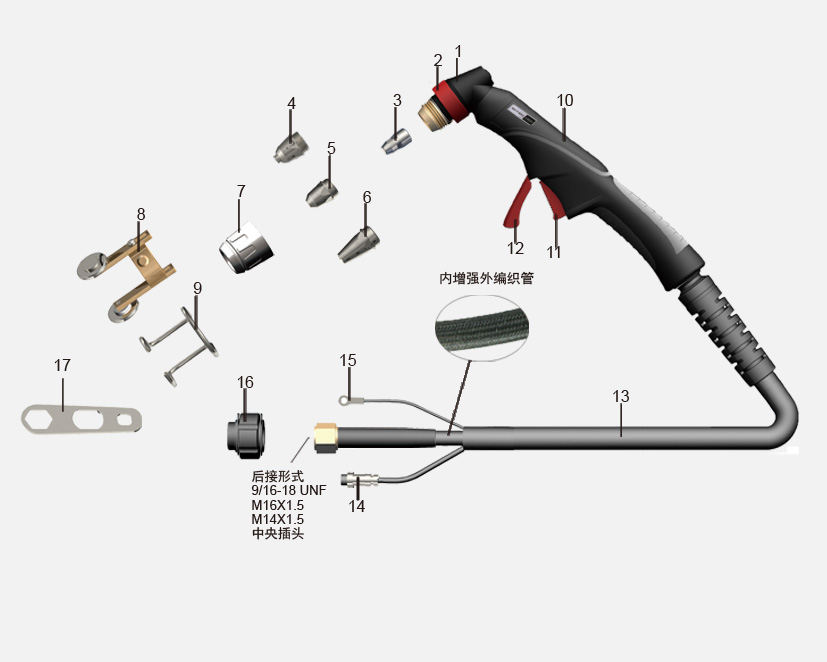

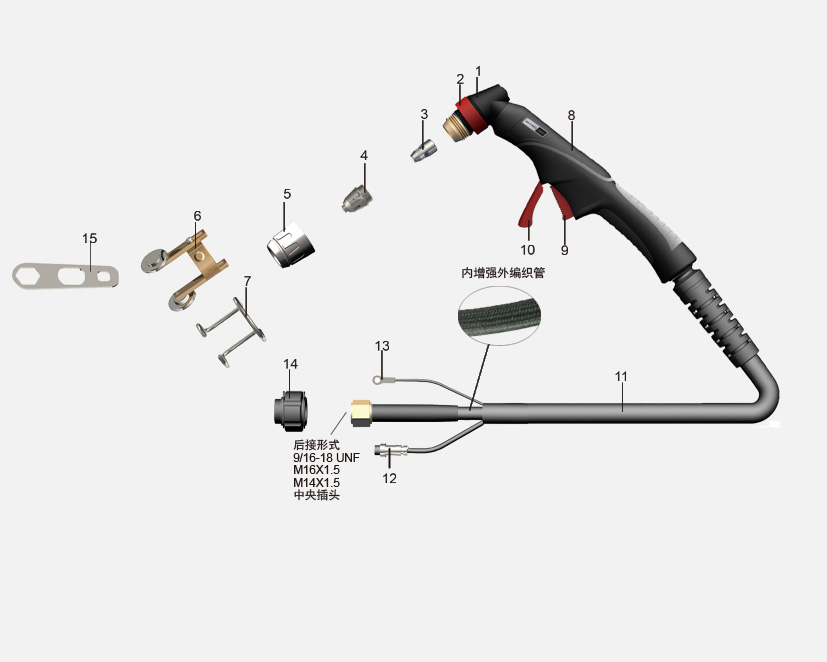

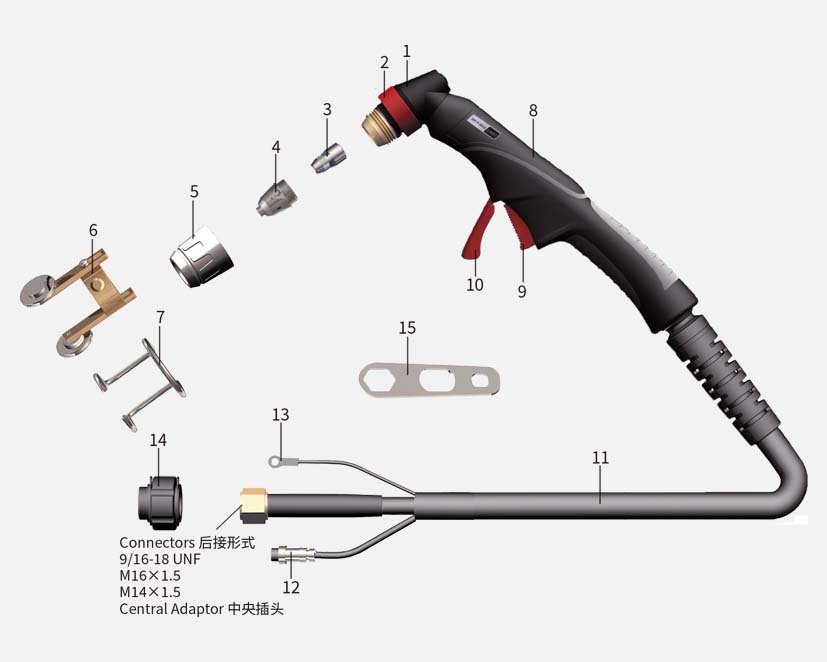

| No. | Order | 描述 | OEM p/n |
| PPA0500.05 | BW P-80NZ 黑狼内置气泵手用切割枪 60A M14×1.5, 5 米 | ||
| PPA0501.05 | BW P-80NZ 黑狼内置气泵手用切割枪 80A M14×1.5, 5 米 | ||
| PPA0502.05 | BW P-80NZ 黑狼内置气泵手用切割枪 100A M14×1.5, 5 米 | ||
| 1 | PPA0110 | BW P-80 手用枪头 | |
| 2 | PPA0112 | 绝缘环 | TKU08103 |
| 3 | PPA0131.01 | 电极 | TET02033 |
| PPA0131.02 | 穿孔电极 | ||
| 4 | PPA0132.01 | 喷嘴 1.1mm 40A | TET01110 |
| PPA0132.02 | 喷嘴 1.3mm 60A | TET01310 | |
| PPA0132.03 | 喷嘴 1.5mm 80A | TET01512 | |
| PPA0132.04 | 喷嘴 1.7mm 100A | TSM06626 | |
| 5 | PPA0133.01 | 老式喷嘴 1.1mm 40A | |
| PPA0133.02 | 老式喷嘴 1.3mm 60A | TET01035 | |
| PPA0133.03 | 老式喷嘴 1.5mm 80A | TET01507 | |
| PPA0133.04 | 老式喷嘴 1.7mm 100A | TET01809 | |
| 6 | PPA0132.05 | 气刨喷嘴 2.5mm | TET02502 |
| 7 | PPA0334.02 | 镀银保护罩 | TFQ08102 |
| PPA0334.01 | 普通保护罩 | ||
| 8 | PPA0138 | 导向轮 | |
| 9 | PPA0139 | 隔离簧 | |
| 10 | PPA0320.03 | FT 手把（黑灰） | |
| 11 | PPA0124.01 | 微动开关 | |
| 12 | PPA0224.01 | 开关保护挡片 | |
| 13 | PPA0550 | 电缆组60A (EPDM 护套) | |
| PPA0551 | 电缆组80A (EPDM 护套) | ||
| PPA0552 | 电缆组100A (EPDM 护套) | ||
| PPA0553 | 电缆组60A ( 夹布橡胶管护套) | ||
| PPA0554 | 电缆组80A ( 夹布橡胶管护套) | ||
| PPA0555 | 电缆组100A ( 夹布橡胶管护套) | ||
| 14 | PPA0171 | 2 芯插头 | |
| 15 | 258 | 引弧线 | |
| 16 | PPA0170.01 | 螺母套 | |
| 17 | PPA013A | 扳手 |
订购说明 :
1.订购时请说明后接形式。
2. 镀银保护罩适用于带有保护电路的切割枪,普通保护罩适用于不带有保护电路的切割枪。
BLACK WOLF is in no way affiliated with PANASONIC. The parts advertised for sale are not genuine PANASONIC parts,but are parts made for and by BLACK WOLF.
References to PANASOINC machines, torches, and numbers are for your convenience only. We reserve the right to substitute genuine PANASONIC parts in place of BLACK WOLF parts.
